Application area

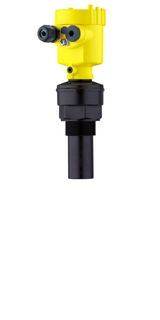

The VEGAPULS WL61 is the ideal sensor for all applications in water and sewage water applications. It is particularly suitable for use in water processing, pump stations as well as overflow basins, for flow measurement in open flumes and gauge monitoring. The VEGAPULS WL61 is an economical solution through versatile and simple mounting options. The flood-proof IP 68 housing ensures a maintenance-free permanent operation.

Advantages

§  Non-contact measurement

§  High plant availability, because wear and maintenance-free

§  Exact measuring results independent of product, process and ambient conditions

Technical data

Measuring range: up to 15 m

Process fitting: thread G1½ mounting strap compression flanges from DN 80, 3"

Process temperature: -40 … +80 °C

Process pressure: -1 … +2 bar (-100 … +200 kPa)

Measuring precision: ±2 mm

Transmitting frequency: K band
