Application area

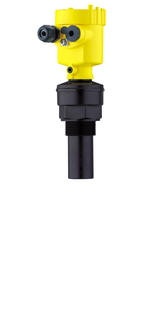

The VEGASON 61 is an ultrasonic sensor for continuous level measurement of liquids or bulk solids. Typical applications are the measurement of liquids in storage tanks or open basins. The sensor is also suitable for the detection of bulk solids in small vessels or open containers. The non-contact measuring principle is independent of product features and allows a setup without medium.

Advantages

§ Non-contact measurement

§ Reliable measurement independent of product features

§ Price-favourable solution for simple applications

Technical data

Measuring range::in liquids: 0.25 … 5 m; in bulk solids: 0.25 … 2 m

Process fitting: thread G1½, 1½ NPT

Process temperature:-40 … +80 °C

Process pressure: -0,2 … +2 bar (-20 … +200 kPa)

Accuracy: +/- 10 mm

SIL qualification: optionally up to SIL2
