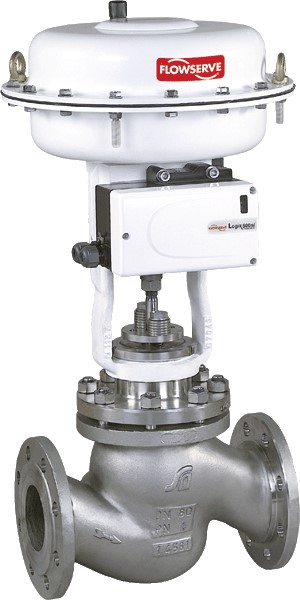

The Flowserve FlowTop control valve is a high-performance, general application valve coupled with the high-thrust FlowAct pneumatic diaphragm actuator.

Features

• Modular and compact design

• High kvs- /cv- values

• Standardized low noise- and cavitation control trims

• Profile-ring sealing between body and seat

• Direct mounted accessories (no piping required)

• Direct mounted accessories (no piping required)

• Short delivery times

Specification:

Type: straight-through valve

Size Range: DN15 to DN400；0.5”to 16”

Pressure Rating: PN10 to PN40 ； Class 150 to 300

Body Materials: Carbon steel; Stainless steel; Most alloys;

Temp. Range: -196℃ to 538℃；-321℉ to 1000℉

The modular design allows by using the same body with different types of bonnets, trims and actuators, the reduction of spare parts and offers an interchangeable valve for a broad range of industries and applications.
